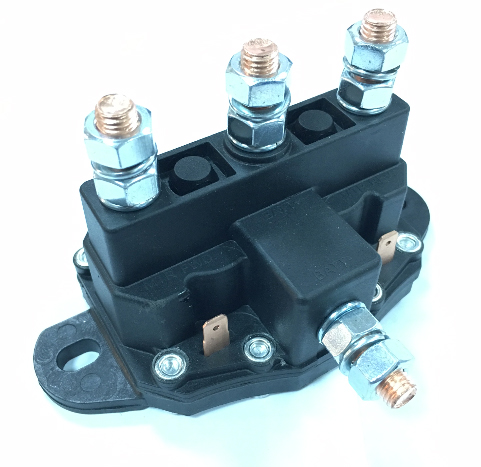

Solenoid & Contactor Switch 1511-215
Model ID：1511-215
12V Motor Reversing Solenoid
12VDC 75A Continuous For 5 Mins,
Intermittent 125A For 30 Secs, 150A For 0.5 Secs.
Maximum Operation Voltage 14.5VDC
DPDT Common Ground Coil, 2 Blade Coil Terminals,
5/16"-24 Studs. Copper Contacts.
Ideal For Any Application That Requires Reversing Motion (Truck Winch, Tarp Systems, Boat Lifts, RV Slide-Out, RV Leveling Systems)
12VDC 75A Continuous For 5 Mins,
Intermittent 125A For 30 Secs, 150A For 0.5 Secs.
Maximum Operation Voltage 14.5VDC
DPDT Common Ground Coil, 2 Blade Coil Terminals,
5/16"-24 Studs. Copper Contacts.
Ideal For Any Application That Requires Reversing Motion (Truck Winch, Tarp Systems, Boat Lifts, RV Slide-Out, RV Leveling Systems)
