Rocker Switch 1118-56P/56PA/56PB/56PBM/56PBM-1/56PM

型號 ID:1118-56P/56PA/56PB/56PBM/56PBM-1/56PM
Rocker Switch, With Plug-in Terminals,
Rating:
12VDC 16A; 24VDC 10A,
125VAC 15A, 250V 10A

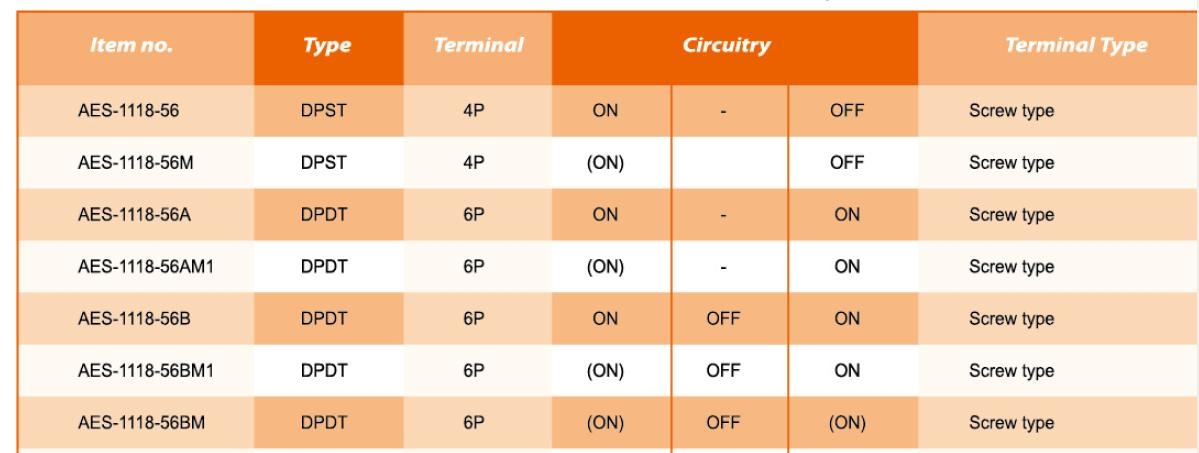

AES-1118-56P DPST, ON-OFF, 4P
AES-1118-56PA DPDT, ON-ON, 6P
AES-1118-56PB DPDT, ON-OFF-ON, 6P
AES-1118-56PBM DPDT, (ON)-OFF-(ON), 6P

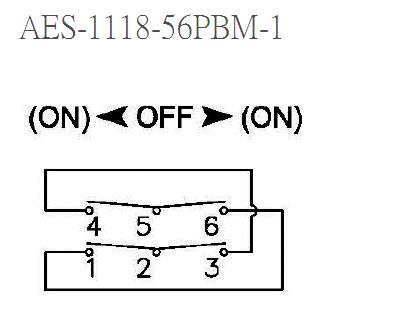

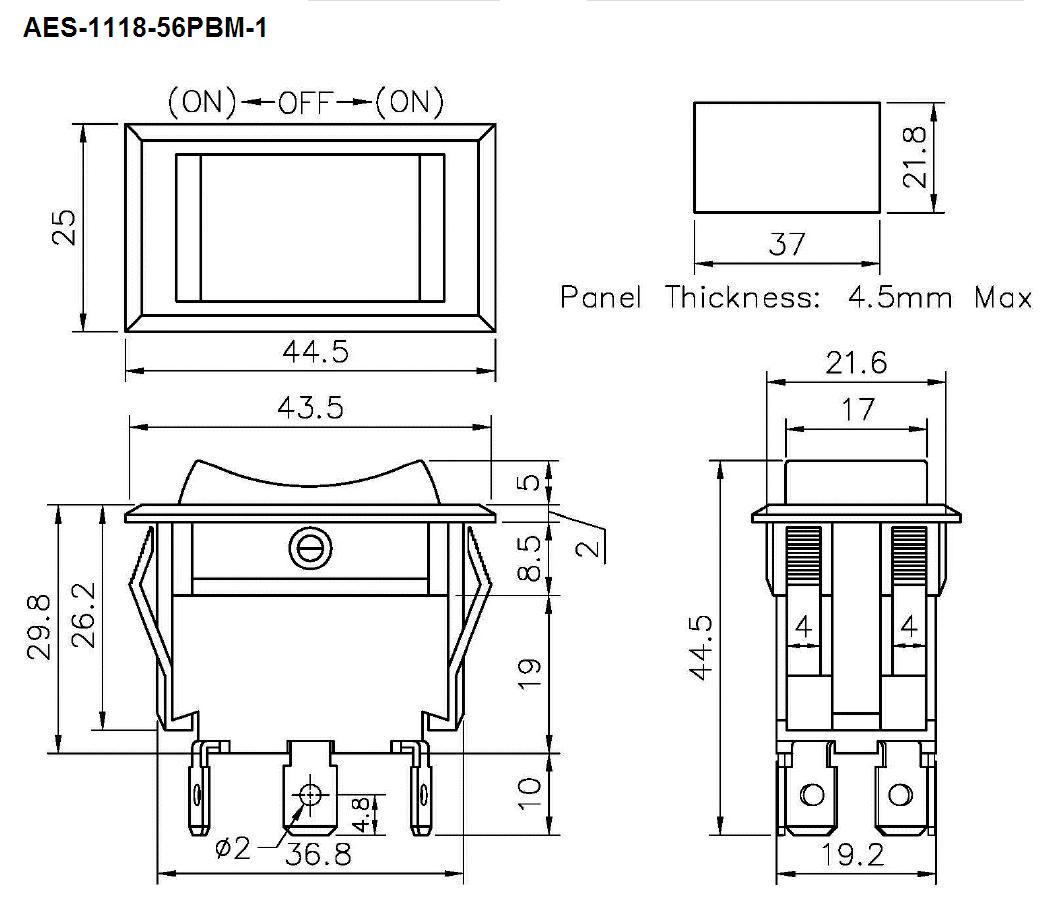

AES-1118-56PBM-1 DPDT, (ON)-OFF-(ON), 6P,
AES-1118-56PM DPST, ON-OFF, 4P
