Battery Selectors & Battery Disconnect Switches 1211-24B
型號 ID：1211-24B
CH# M-752

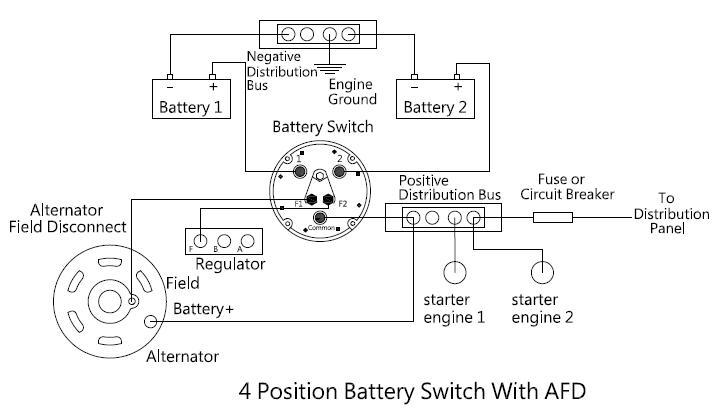

Master Battery Selector and Disconnect Switch with AFD (Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being set to "OFF" while the engine is running.)
For application up to 36VDC,
For 2 Batteries use.
4 Positions: Both/1/Off/2
Rating: 310AMPS Continuous, 500AMPS/5mins
Plastic Housing Type.
Master Battery Selector and Disconnect Switch with AFD (Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being set to "OFF" while the engine is running.)
For application up to 36VDC,
For 2 Batteries use.
4 Positions: Both/1/Off/2
Rating: 310AMPS Continuous, 500AMPS/5mins
Plastic Housing Type.
