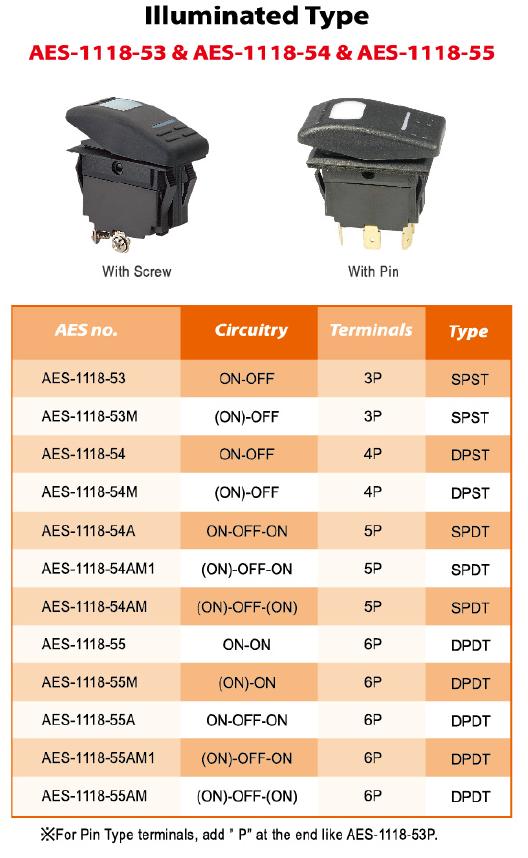

Rocker Switches 1118-55, 55A, 55AM, 55AM1, 55AP, 55M, 55P, 55PAM

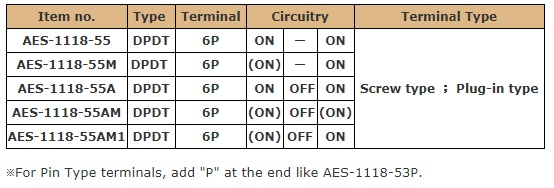

Model ID：1118-55, 55A, 55AM, 55AM1, 55AP, 55M, 55P, 55PAM

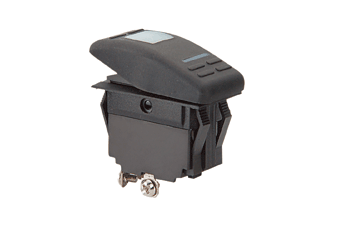

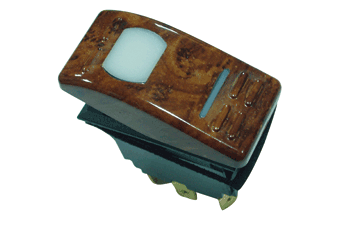

Illuminated Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.

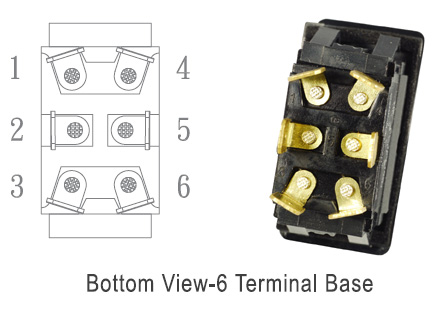

6 terminals (screw type or plug-in type)
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.
6 terminals (screw type or plug-in type)
