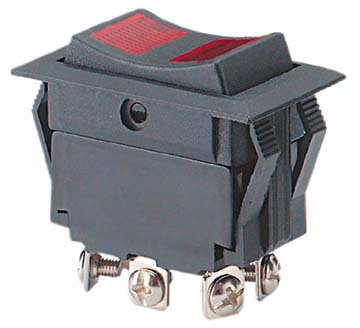

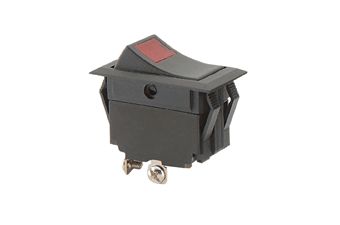

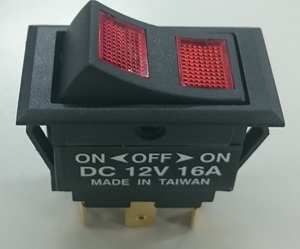

Rocker Switches 1118-57, 57A, 57B, 57BP, 57P, 57PA

Illuminated Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance: 50m Ω Max.
Insulation Resistance: DC 500V 100m Ω Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.
4 or 6 terminals (screw type or plug-in type)
