Rocker Switches 1118-59, 59A, 59B, 59P, 59PB

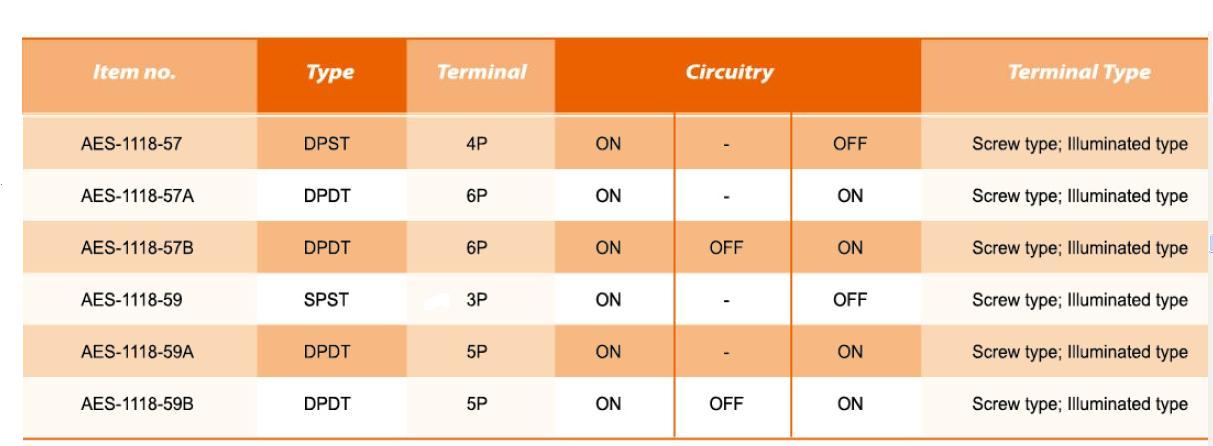

Model ID：1118-59, 59A, 59B, 59P, 59PB

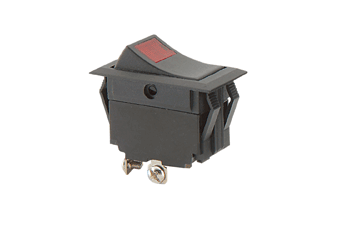

Illuminated Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.
3 or 5 Terminals (screw type or Plug-in type)
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.
3 or 5 Terminals (screw type or Plug-in type)
