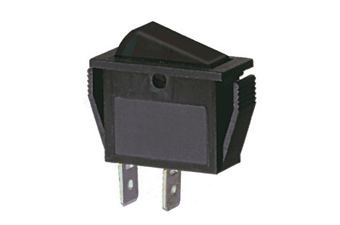

Rocker Switches 1118-63

Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps
Contact R.: 50m Ω Max.
Insulation R: DB500V 100m Ω Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles.

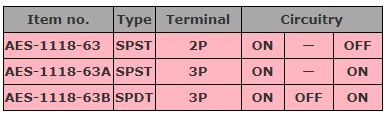

SPST
2 or 3 terminals
