Master Battery Selector & Disconnect Switch With AFD 1211-25B
型號 ID：1211-25B
CH# M-753

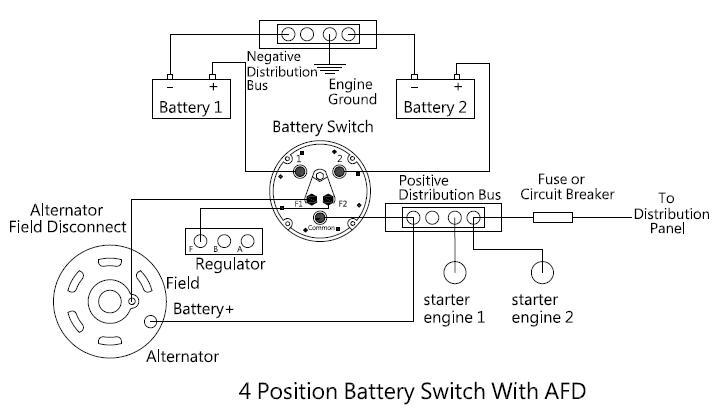

Master Battery Selector and Disconnect Switch with AFD
(Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being set to "Off" while the engine is running.) And Lock.
For Application Up To 36VDC, For 2 Batteries use.

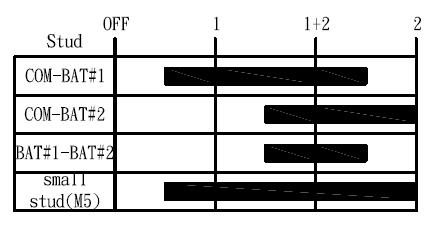

4 Positions: Both/1/Off/2

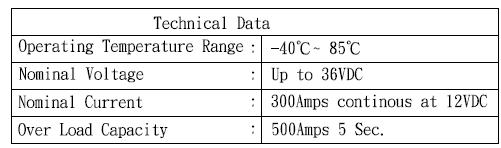

Rating: 310Amps Continuous, 500Amps/5mins
Plastic Housing Type.
Master Battery Selector and Disconnect Switch with AFD
(Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being set to "Off" while the engine is running.) And Lock.
For Application Up To 36VDC, For 2 Batteries use.
4 Positions: Both/1/Off/2
Rating: 310Amps Continuous, 500Amps/5mins
Plastic Housing Type.
