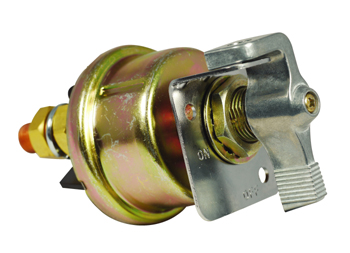

Single Pole Battery Disconnect Switch 1411-18A-L
Model ID：1411-18A-L
CH#75908

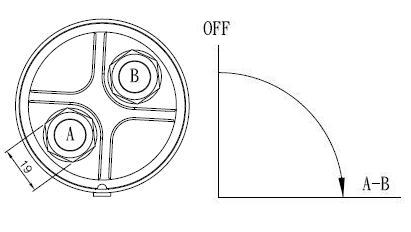

Single Pole, OFF-ON. Disconnects Battery Circuit Only.
Mounting Stem: 3/4’’-16 Thread, Fits Panels up Through 1/4’’ Thick. 2 1/2’’-20 Copper Stud.
Indexing Pin Align Switch and Prevents Rotation.
Rating: 12VDC 300 Amps Continuous, 2,000 amps Intermittent,
With Lock-Out Kit
Single Pole, OFF-ON. Disconnects Battery Circuit Only.
Mounting Stem: 3/4’’-16 Thread, Fits Panels up Through 1/4’’ Thick. 2 1/2’’-20 Copper Stud.
Indexing Pin Align Switch and Prevents Rotation.
Rating: 12VDC 300 Amps Continuous, 2,000 amps Intermittent,
With Lock-Out Kit
