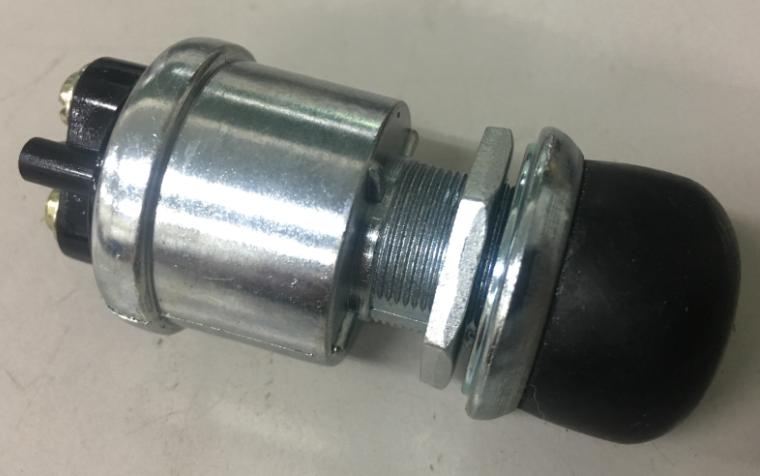

2 Terminals Push Button Switch 1117-35
型號 ID：1117-35
Push Button Switch
For Application To 36VDC, Off-On, Normally Off.
12VDC 35Amps, 24VDC 20Amps.
On With Button Depressed, Spring Return To Off.
Chrome Plated Button And Face Nut, 2 Screw Terminals.
With O-Ring Seal In The Mounting Stem.
Mounting Stem：5/8"-32 Thread, 21/32"-Long.
With Screw-on Black Rubber Protective Cap.
CH # 9216-03
For Application To 36VDC, Off-On, Normally Off.
12VDC 35Amps, 24VDC 20Amps.
On With Button Depressed, Spring Return To Off.
Chrome Plated Button And Face Nut, 2 Screw Terminals.
With O-Ring Seal In The Mounting Stem.
Mounting Stem：5/8"-32 Thread, 21/32"-Long.
With Screw-on Black Rubber Protective Cap.
CH # 9216-03
