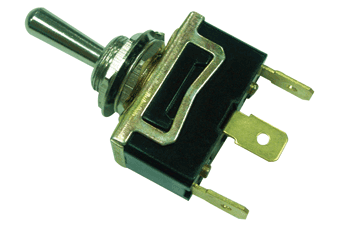

Toggle Switches 1118-46
型號 ID:1118-46
Double Pole Toggle Switch
Rating: 12V 20Amps
Contact R.: 500mΩ Max.
Insulation R.: DC 500V 100MΩ Min.
Dielectric Strength: AC 100V 1 minute
Operating Temperature: -20℃~+65℃
Electrical Life: 50,000 make and break cycles at full load
