Rocker Switch 1118-58/58M/58A/58AM1/58B/58BM1/58BM

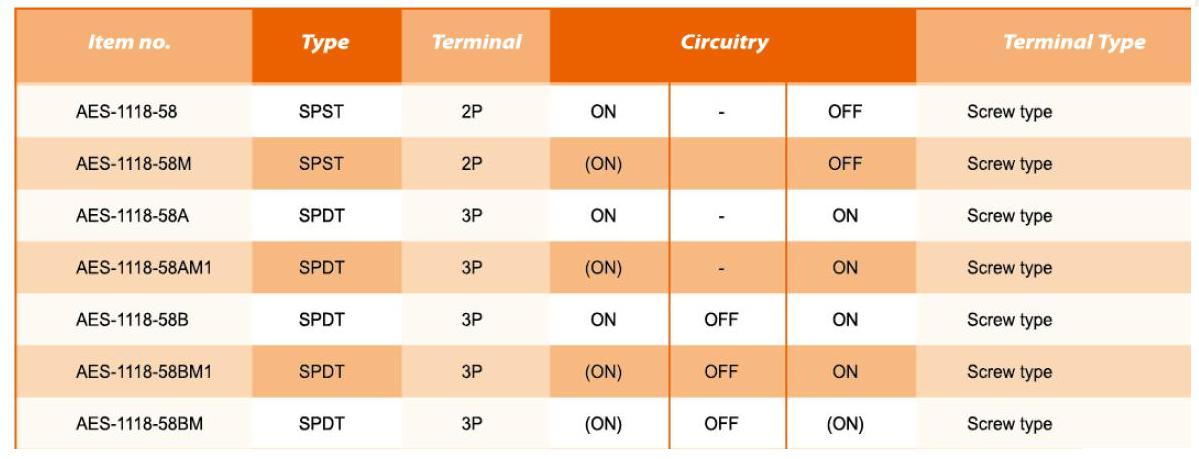

Model ID：1118-58/58M/58A/58AM1/58B/58BM1/58BM
Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps.
Contact Resistance.: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.
Electrical Life: 20,000 cycles
With Screw Type Terminal.
For Plug-in Type Terminals, Add "P" At The End.
Ex. AES-1118-56P.
