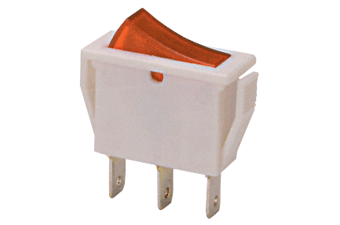

Illuminated Rocker Switch 1118-63L1/ L2

Illuminated Rocker Switch
12VDC 16Amps; 24VDC 10Amps
125VAC 16Amps; 250VAC 10Amps
Contact Resistance: 50mΩ Max.
Insulation Resistance: DC 500V 100mΩ Min.
Dielectric Strength: AC 1500V 1 minute.

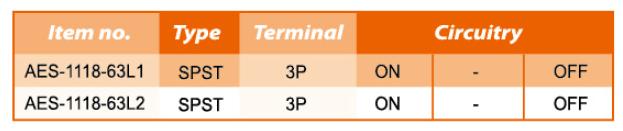

SPST, 3 terminals
