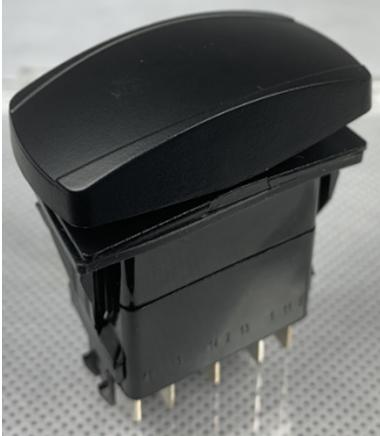

Rocker Switches 1118-101 & 1118-102
Model ID：1118-101 & 1118-102
Rocker Switch
12VDC Rocker Switch, Illuminated type or not-illuminated.
Rating：12VDC 20Amps, 24VDC 10Amps
125VAC 16Amps, 250VAC 10Amps.
Contact R.：50mΩ
Insulation R：DB 500V 100mΩ 1 minute
Electrical Life：20,000cycles
Meet：IP66
With Plug-in Type terminal only.
12VDC Rocker Switch, Illuminated type or not-illuminated.
Rating：12VDC 20Amps, 24VDC 10Amps
125VAC 16Amps, 250VAC 10Amps.
Contact R.：50mΩ
Insulation R：DB 500V 100mΩ 1 minute
Electrical Life：20,000cycles
Meet：IP66
With Plug-in Type terminal only.
